LED STRIP LIGHT MANUFACTURER IN CHINA
LED Strip Light
Fast delivery time within 7-10 days
Waterproof IP54/IP65/IP67/IP6
Cree, Lumileds, San’an LED chips
3-5 year warranty
OEM, ODM service for all your request
All related parts can be provided
Introduce the Silicone LED Strip Light by series
Advantages of COB LED Strip Lights
Uniform Light Distribution
COB strips have even illumination without dark spots.
Better Heat Management
COB design promotes better heat release.
Easy Installation
The Strip lights can be cut into the length you need, and leave our factory fully assembled. What you need to do is the installation.
High Brightness
They provide intense, focused light.
Higher Lumen Output
COB strips consume less power while delivering high light output.

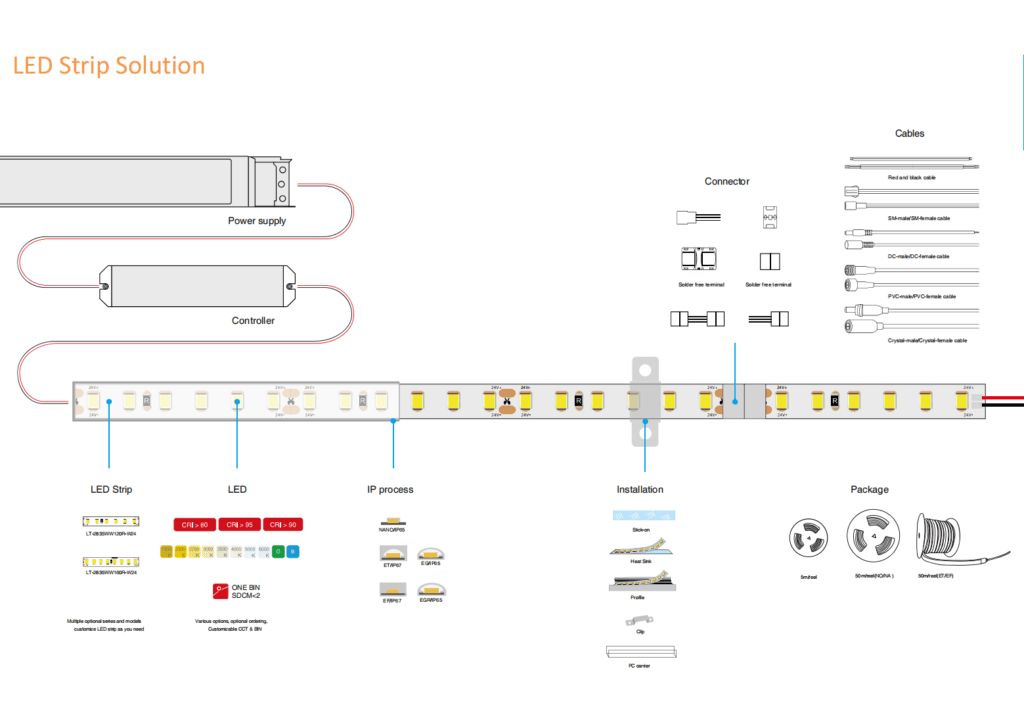

The Installation For LED Strip Light

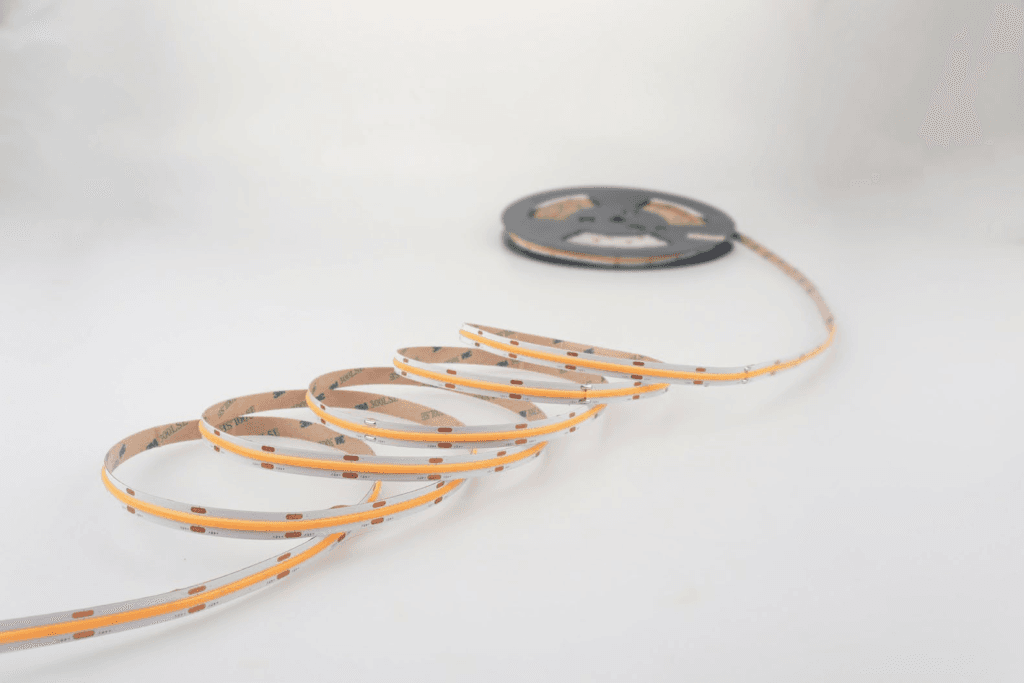

1. COB Series
Advantages of COB LED Strip Lights
High Brightness: They provide intense, focused light.
Uniform Light Distribution: COB strips have even illumination without dark spots.
Better Heat Management:COB design promotes better heat release.
Higher Lumen Output: COB strips consume less power while delivering high light output.

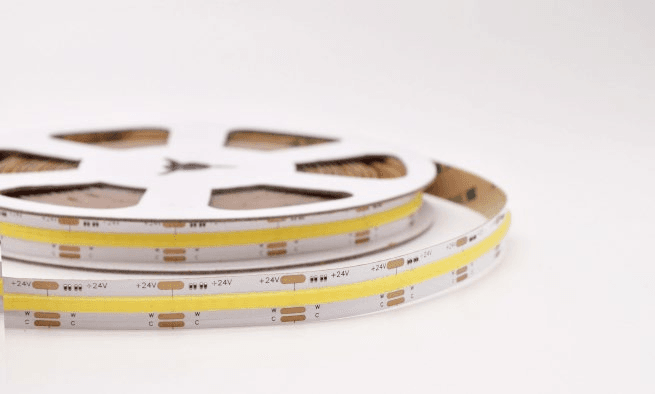

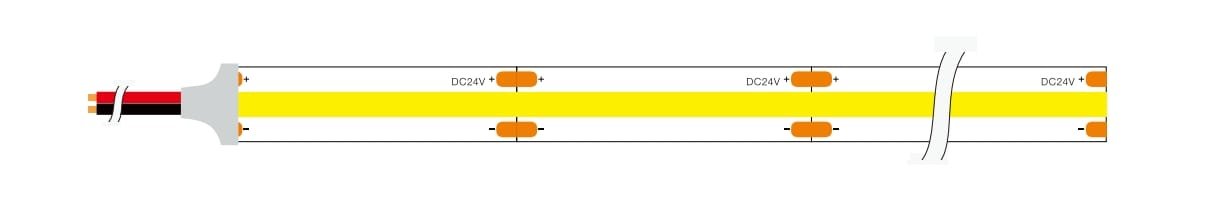

320 Chips LED Strip Light, COB Series
Model: AB-COB-320-8
Voltage: 24V
Power: 9W
LED QTY: 320
CCT/Color: 2700-6500K,RGBW
Lumen Output: 95Lm/W
Cutting Unit: 2.5CM/5CM
IP Rate: IP20

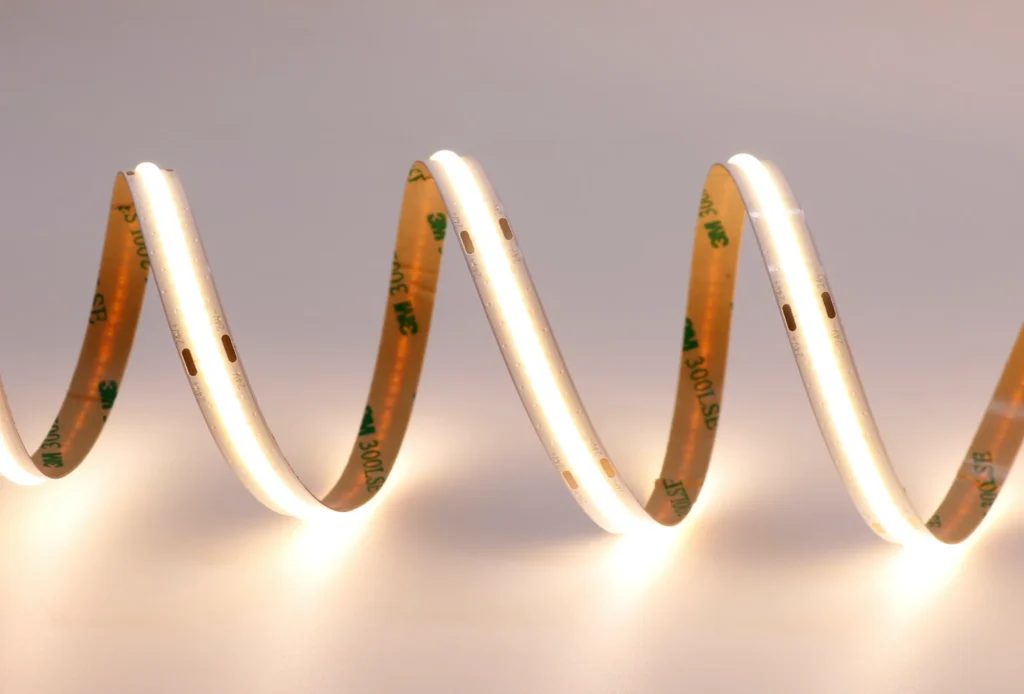

512 Chips LED Strip Light, COB Series
Model: AB-COB-512-10
Voltage: 24V
Power: 14W
LED QTY: 512
CCT/Color: 2700-6500K,RGBW
Lumen Output: 110Lm/W
Cutting Unit: 6.5CM
IP Rate: IP20

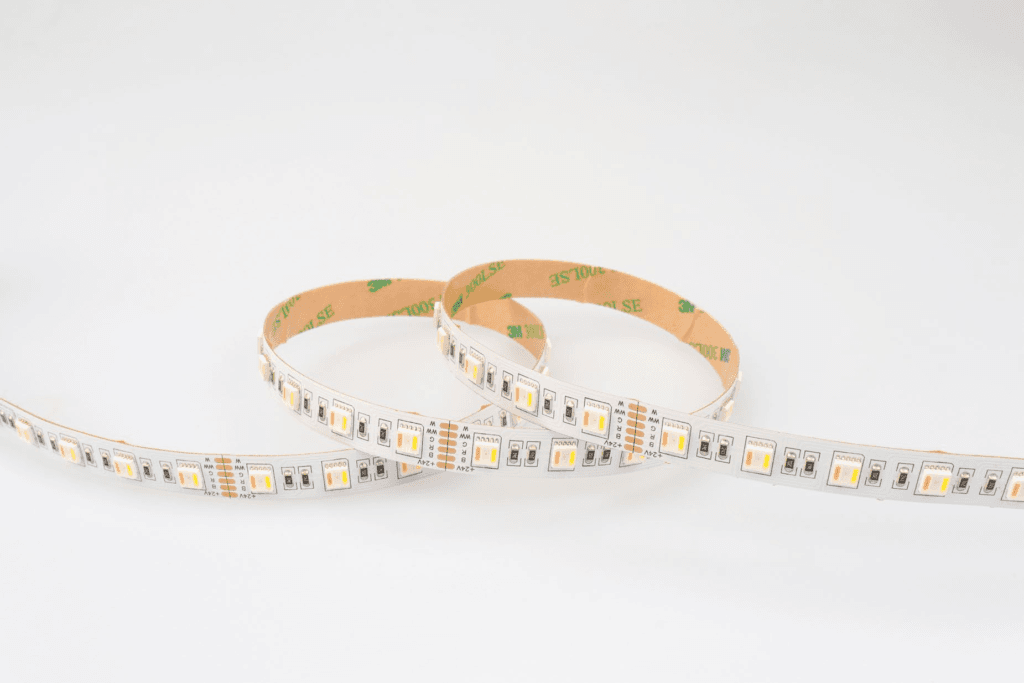

2. SMD Series
Advantages of LED SMD Strips
Energy Efficiency: Less power consumption while providing bright, consistent light.
Flexibility: Easily bends and installs in various places.
Long Lifespan: Long lifetime, reducing maintenance costs.

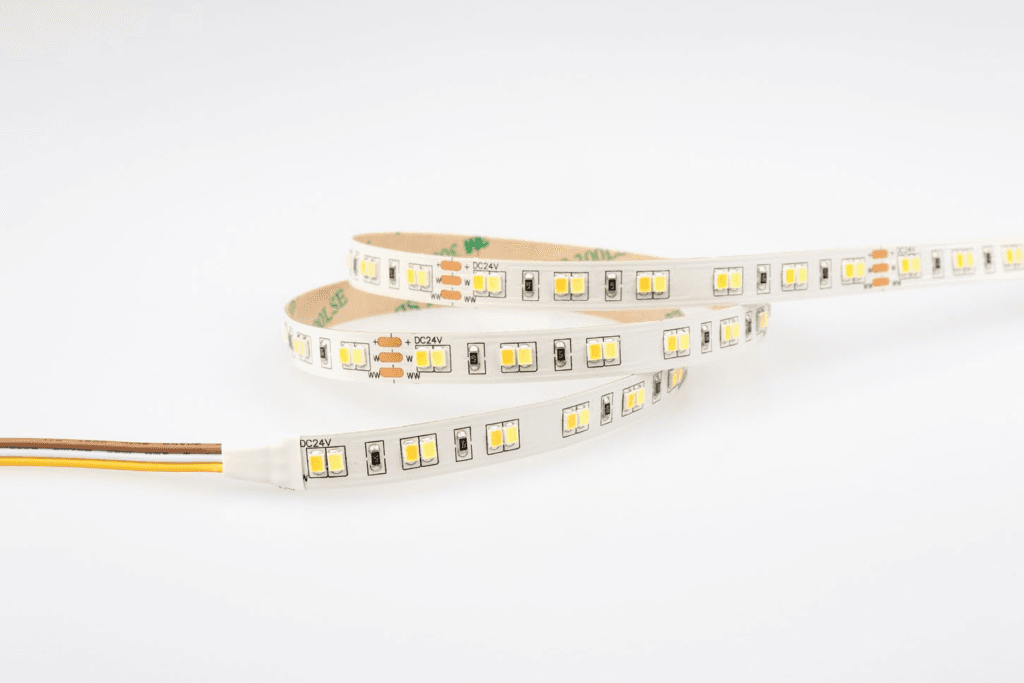

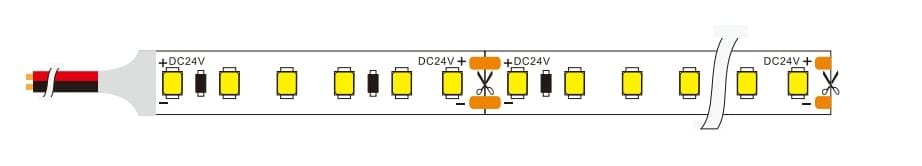

2835 60 Chips LED Strip Light, SMD Series
Model: AB-2835-60-8
Voltage: 12/24V
Power: 10W
LED QTY: 60
CCT/Color: 2700-6500K,RGBW
Lumen Output: 100Lm/W
Cutting Unit: 5CM/10CM
IP Rate: IP20

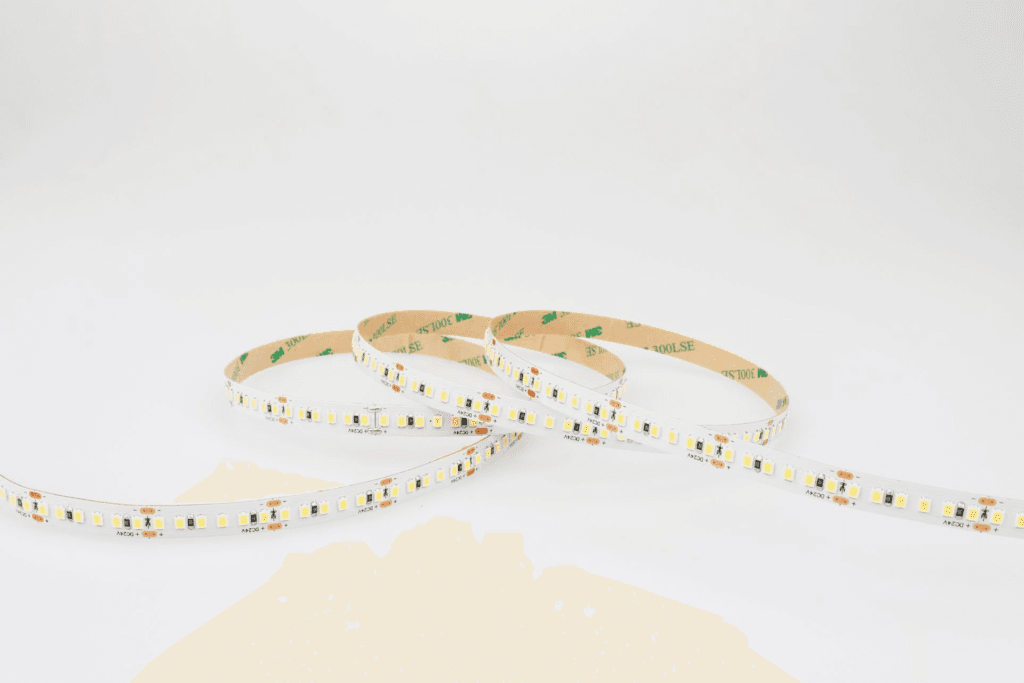

2835 30 Chips LED Strip Light, SMD Series
Model: AB-2835-240-8
Voltage: 12/24V
Power: 24W
LED QTY: 240
CCT/Color: 2700-6500K,RGBW
Lumen Output: 100Lm/W
Cutting Unit: 5CM/10CM
IP Rate: IP20

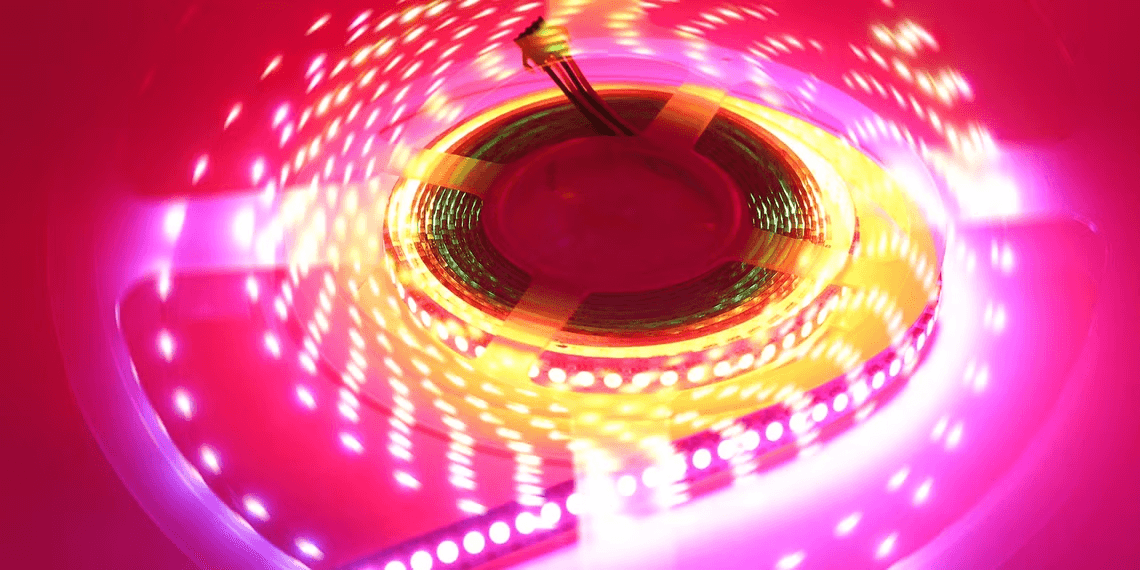

3. RGB Series
Advantages of LED RGB Strips
Multi Colors: You can create a wide range of colors for your setting.
Energy Efficient: LED RGB strips consume less power.
Remote Control Options: Many RGB strips offer remote control or App for easy color changes

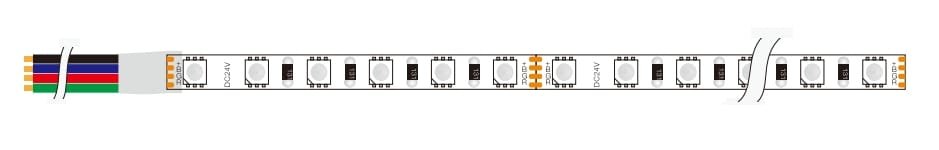

2835 120 Chips LED Neon Light, RGB Series
Model: AB-2835-120
Voltage: 12V /24V
Power: 24W
LED QTY: 120
CCT/Color: RGB
Lumen Output: /
Cutting Unit: 2.5CM/5CM
IP Rate: IP20

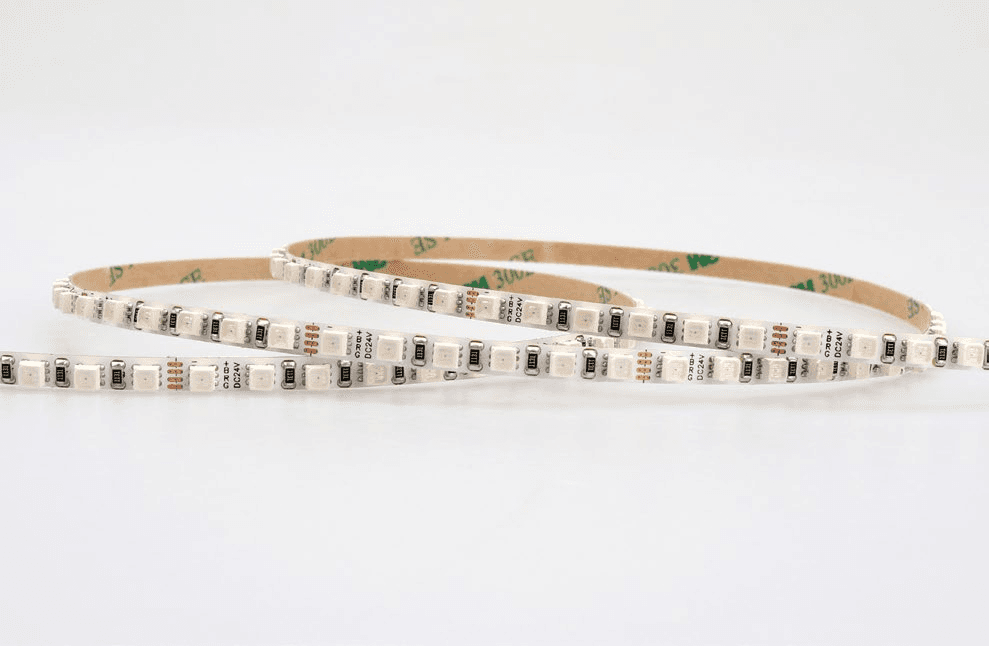

3535 80 Chips LED Neon Light, RGB Series
Model: AB-3535-80
Voltage: 5V/12V
Power: 4.8W/9.6W
LED QTY: 80
CCT/Color: RGB
Lumen Output: /
Cutting Unit: 5CM/10CM
IP Rate: IP20
4. High Voltage
Advantages of High Voltage LED Strips
Longer Runs: High-voltage strips can extend longer distances.
No Transformer Required: They can be directly connected to mains power, simplifying installation.
Durability: These strips are usually more robust and weather-resistant, making them ideal for outdoor use.
560 Chips LED Neon Light, RGB Series
Model: AB-220COB-560
Voltage: 220V
Power: 9.6W
LED QTY: 560
CCT/Color: CCT
Lumen Output: CC Version
Cutting Unit: 5CM/10CM
IP Rate: IP20

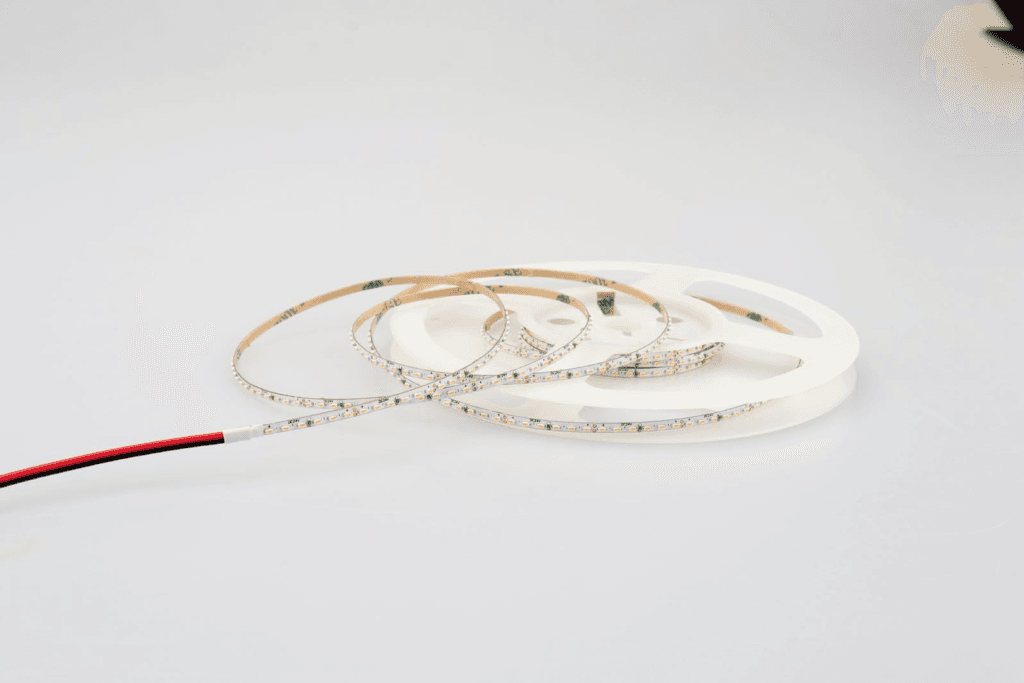

2010 364 Chips LED Neon Light, RGB Series
Model: AB-2010-364
Voltage: 220V
Power: 20W
LED QTY: 364
CCT/Color: TW
Lumen Output: /
Cutting Unit: 5CM/10CM
IP Rate: IP20
Buying Guidance for LED Strip Lights
LED strip lights are a popular lighting solution, perfect for home decoration, commercial use, and creative usage. However, choosing the right type of LED strip light can be challenging with so many options available. In this guide, we’ll walk you through the four main types of LED strip lights—COB, SMD, RGB, and high voltage strips. We’ll cover their advantages, applications, and common FAQs to help you make an informed decision.
Types of LED Strip Lights

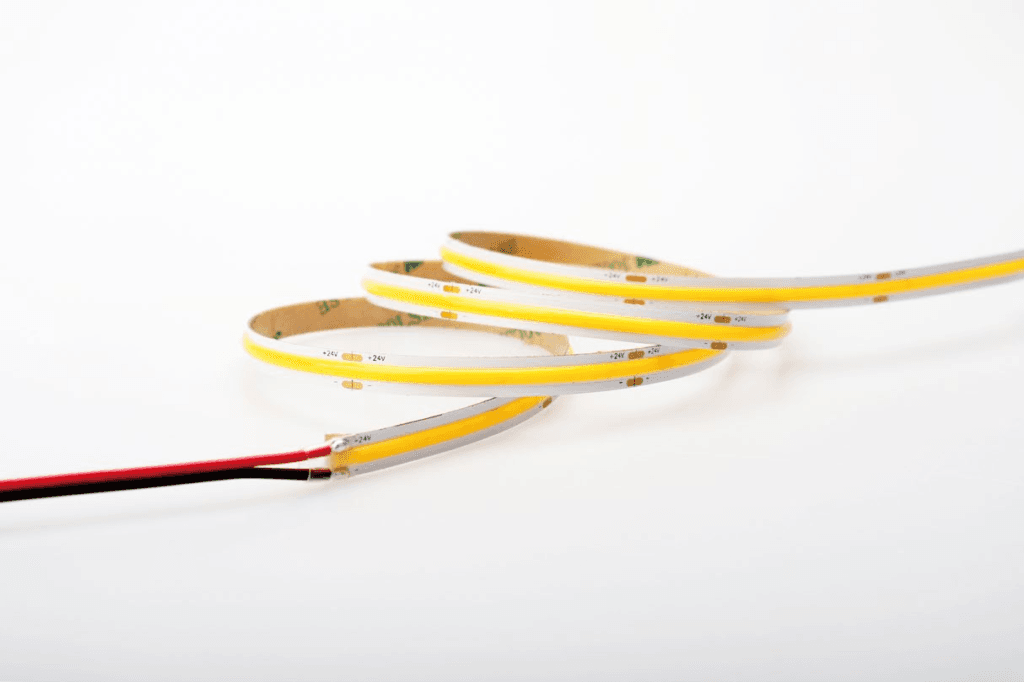

1.COB LED Strip
COB (Chip on Board) LED strips are a new technology of multiple small LED chips placed closely together. This provides a more uniform and continuous light without the visible dots from traditional strips.
Advantages:
Smooth and Even Light: COB strips offer a seamless, dot-free light that’s ideal for tasks where uniformity is key, such as under-cabinet lighting.
High Brightness: These strips have high lumen output, making them brighter than many traditional options.
Flexible Design: The slim, flexible profile allows them to fit in tight spaces
Applications:
Task lighting in kitchens
Backlighting for displays
Ambient lighting many locations
FAQ:
Can COB strips be dimmed?
Yes, most COB strips can be dimmed when matched with proper drivers or controllers.
Are they waterproof?
Waterproof strips are available, but check the product specifications for outdoor or wet-area use.
2.SMD LED Strip
SMD LED strips are one of the most common types of strip lights. They are named for the tiny LED chips that sit on the surface of the strip.
Advantages:
Wide Range of Options: SMD strips come in different brightness levels and color temperatures, flexible for many application.
Affordable: These strips are generally cost-effective and widely available.
Good Efficiency: They offer a good balance of energy efficiency and brightness.
Applications:
Decorative lighting for living rooms, bedrooms, or restaurants
Accent lighting for shelves, stairs, and mirrors
Commercial lighting in retail stores or office spaces
FAQ:
What are the most common SMD sizes?
The most common sizes are SMD 2835, 5050, and 3528, with varying brightness and power levels.
Can I cut SMD strips to size?
Yes, SMD strips usually have designated cutting points, making them easy to customize.
3.RGB LED Strip

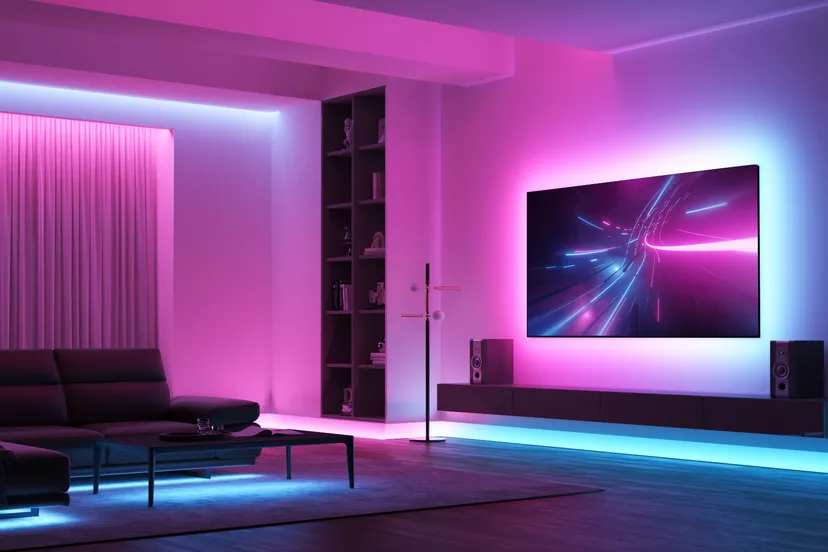

RGB LED strips can produce a wide range of colors by mixing these three basic colors. Some strips even include additional white LED (RGBW) for more natural lighting.
Advantages:
Color Variety: RGB strips are perfect for creating dynamic, color-changing effects for mood lighting.
Remote-Controlled: Most RGB strips come with controllers or can be connected to smart home systems.
Customization: You can easily change colors, adjust brightness, or set specific lighting patterns.
Applications:
Party and event lighting
Gaming room setup
Accent lighting in bars, clubs, or outdoor patios
FAQ:
Can RGB strips display multiple colors at once?
Basic RGB strips can show one color at a time, but advanced ones like “addressable” RGB strips can show multiple colors along the length of the strip.
Do I need a special controller for RGB strips?
Yes, RGB strips typically come with a controller or require one to change colors and modes.
4. High Voltage LED Strip
High voltage LED strips run directly on mains power (110V or 220V), unlike low voltage strips that need a separate power supply. These strips are often used for larger installations where long lengths are required.
Advantages:
Longer Runs: You can install long run without worrying about voltage drop or needing additional power supplies.
High Durability: These strips are designed to withstand harsher conditions and are often waterproof, making them ideal for outdoor use.
Easy Installation: Since they run on high voltage, they can be plugged directly into an outlet.
Applications:

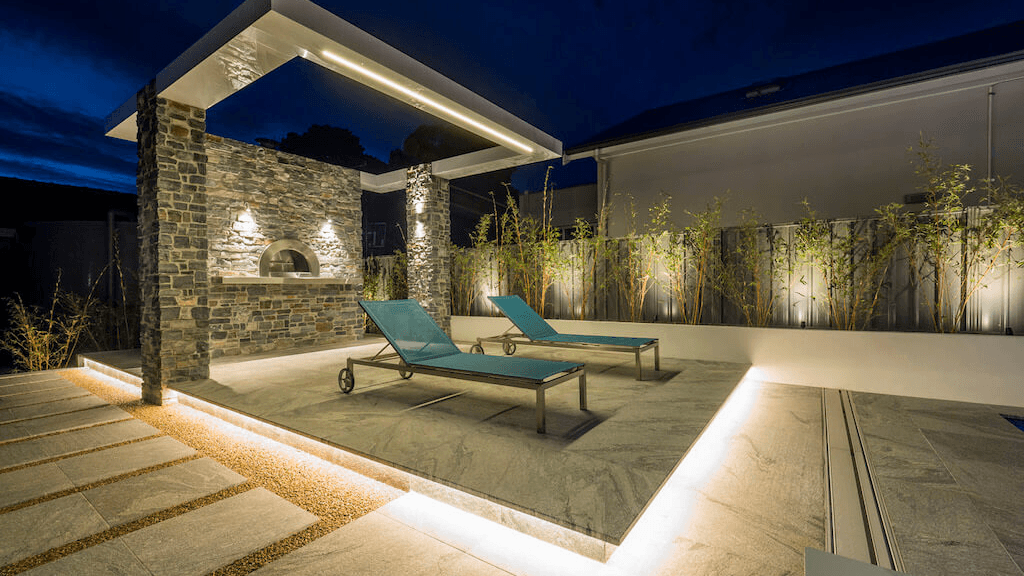

Outdoor lighting for buildings and landscapes
Large commercial lighting installations
Festive decorations
FAQ:
Are high voltage LED strips safe?
Yes, but ensure proper installation and safety issues. They should be installed by professionals for outdoor or high-power projects.
Can they be dimmed?
Some high voltage strips can be dimmed, but you’ll need to check compatibility with your dimming system.
